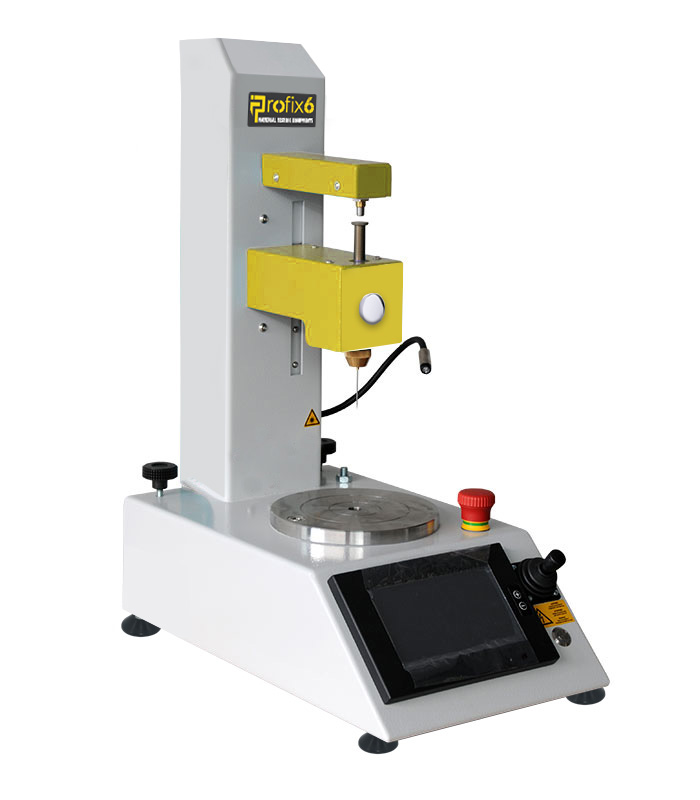

AUTOMATIC DIGITAL BITUMEN PENETROMETER
The Automatic Digital Bitumen Penetrometer is used for determination of the needle penetration according to Astm and EN standards. The penetration depth of the needle is determined with a pulse type electronic measuring system. Before each start of the test the measuring system automatically resets, and then the penetration needle moves down to the sample by using the electric drive, the needle position can be finely adjusted by using the buttons located on the penetrometer front . The bitumen penetrometer is supplied complete with outfit for penetration of bituminous materials including needle, holder, 50 g weight.
The Automatic Digital Bitumen Penetrometer is supplied with;
• Penetration Needle, 1 piece
• Transfer Dish
• Sample Cup, Ø 55x35 mm, 6 pieces, stainless steel
| B1180 - | Automatic Digital Bitumen Penetrometer, 220-240 V 50-60 Hz, 220-240 V 50-60 Hz |
| B1180/110 - | Automatic Digital Bitumen Penetrometer, 110 V 60 Hz |
| B1175 - | Penetration Needle, 2,5 g |
Standards: ASTM D5 | EN 1426 | AASHTO T49
Test Time
5 seconds (adjustable from 0.1 to 9999 sec.)
Test Load
100 g (plunger 97.5 g + 2.5 g penetration needle)
Measuring Range
0-50 mm
Resolution
0.01 mm
Dimensions
300x450x700 mm
Weight (approx)
22 kg
Power
75 W
