COMPACTION FACTOR APPARATUS
Category
Sub Category
Product
Product Code
51-CF475150
Quantity in Stock
Conctact with us
Standards
BS 1881-103, 5075 | EN 12390-3
The Compaction factor apparatus is designed to undertake a more accurate and sensitive test procedure than the simple slump test.

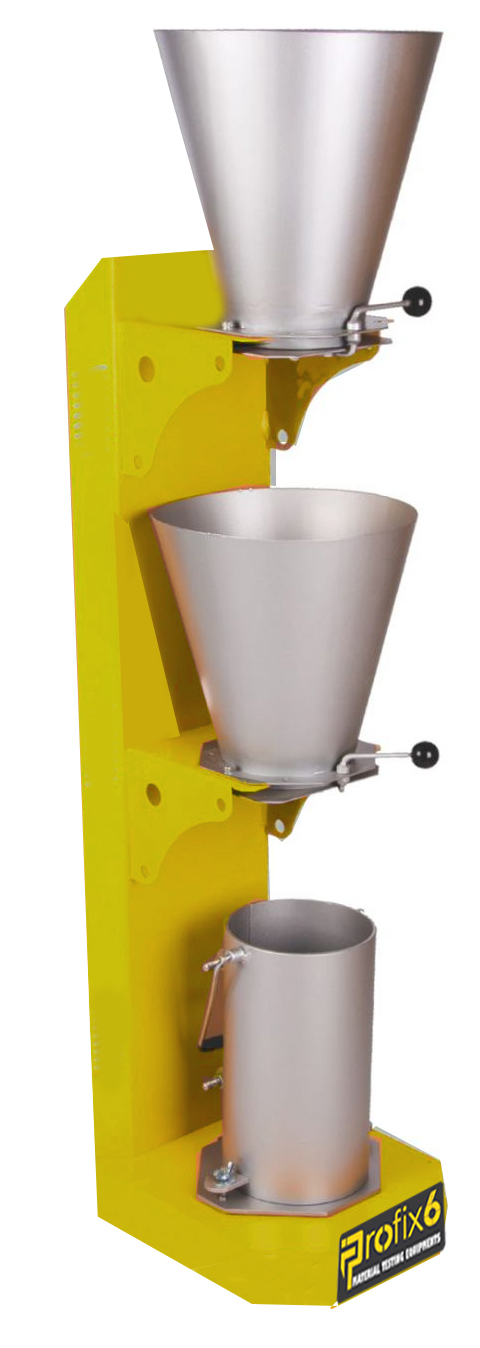

The apparatus consists of two conical hoppers having a hinged trap door fixed to the lower end of each hopper, allowing the concrete sample to flow freely into the cylindrical mould.
The hoppers and mould are mounted on a rigid steel frame and are easily removable for cleaning.
The entire apparatus is protected against corrosion.
| Dimensions | 320x420x1300 mm |
|---|---|
| Weight (approx) | 45 kg |
| 51-CF475150 | Compaction Factor Apparatus |
| Accessories | |
|---|---|
Standards: BS 1881-103, 5075 | EN 12390-3
