DIGITAL CALIPERS

Sub Category
Product Code
55-CL4845
Quantity in Stock
Conctact with us
Standards
.

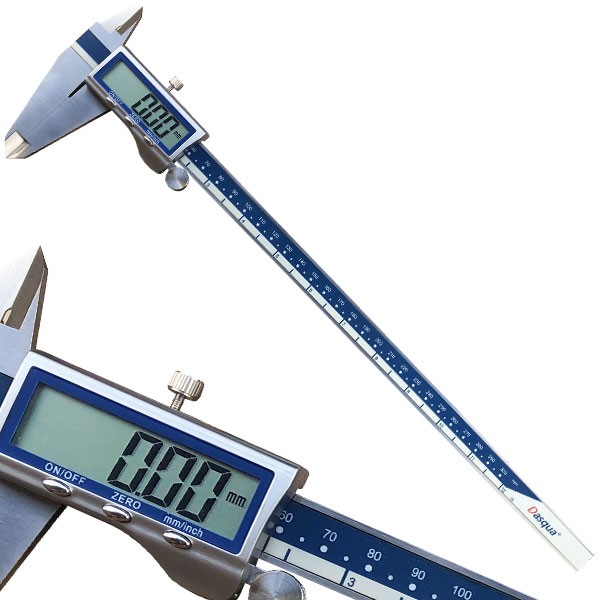

Digital calipers are devices available in different models that can measure thickness with an accuracy of 0.01 mm between 0-150 mm and 0-600 mm.

Thanks to its ability to measure in both millimeters (mm) and inches (inch), the digital caliper offers a practical and precise solution for your various measurement needs.

One of the most important features of the caliper is its very clear display. The LCD screen with a 10 mm digit height can be easily read from different angles.

Digital calipers have the ability to perform internal diameter, external diameter, and depth measurements accurately and practically.

The upper and lower jaws of the digital caliper have strict control over accuracy and hardness according to DIN862 standards.

It features a vacuum-hardened body. This provides homogeneous hardness and wear resistance, ensuring a longer service life.

Features
• Thanks to the automatic shut-off feature, the caliper automatically switches off after approximately 5 minutes of inactivity, saving battery power.
• You can turn the caliper on or off with the "On/Off" button.
• You can easily switch between measurement units with the "mm/in" buttons.
• The LCD screen on the digital caliper allows you to view the measured values ​​digitally.
• There is a locking screw at the top of the caliper. With this screw, you can both adjust the tightness of the device during measurement and completely lock the device.
• It operates with a CR2032 battery.

Product Code 55-CL484515 55-CL484520 55-CL484530 55-CL484550 55-CL484560
Measurement Range 0-150 mm / 0-6 in 0-200 mm / 0-8 in 0-300 mm / 0-12 in 0-500 mm / 0-20 in 0-600 mm / 0-24 in
Accuracy 0.01 mm / 0.0005 in 0.01 mm / 0.0005 in 0.01 mm / 0.0005 in 0.01 mm / 0.0005 in 0.01 mm / 0.0005 in
Resolution 0.01 mm / 0.0005 inches 0.01 mm / 0.0005 inches 0.01 mm / 0.0005 inches 0.01 mm / 0.0005 inches 0.01 mm / 0.0005 inches
Display LCD Display LCD Display LCD Display LCD Display LCD Display
Lower Jaw Length 40 mm 50 mm 60 mm 100 mm 100 mm
Upper Jaw Length 21 mm 24 mm 26 mm 45 mm 45 mm
Operating Temperature 0°C ~ 40°C 0°C ~ 40°C 0°C ~ 40°C 0°C ~ 40°C 0°C ~ 40°C
Storage Temperature -20°C ~ 70°C -20°C ~ 70°C -20°C ~ 70°C -20°C ~ 70°C -20°C ~ 70°C
Unit to Measure inches and mm inches and mm inches and mm inches and mm inches and mm
Power Supply 1 x CR2032 battery. 1 x CR2032 battery. 1 x CR2032 battery. 1 x CR2032 battery. 1 x CR2032 battery.
55-CL484515 Digital Caliper, Measuring Range: 0-150 mm
55-CL484520 Digital Caliper, Measuring Range: 0-200 mm
55-CL484530 Digital Caliper, Measuring Range: 0-300 mm
55-CL484550 Digital Caliper, Measuring Range: 0-500 mm
55-CL484560 Digital Caliper, Measuring Range: 0-600 mm
Accessories
55-CL484575 CR2032 Batery

Standards: .

Digital Calipers 55-CL4845 PROFIX6 Digital Calipers
PROFIX6
