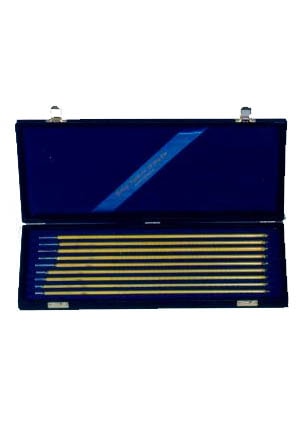

IP AND ASTM THERMOMETERS
Category
Sub Category
Product
Product Code
55-IT52510
Quantity in Stock
Conctact with us
Standards
.
ASTM and IP Thermometers listed below which are in accordance with the specifications of the American Society for Testing and Materials (ASTM), Institute of Petroleum (IP) and British Standards (BS).
While these thermometers were designed for use in specific tests many of them are used in other applications when precision thermometers are required.
| Product Code | IP Ref. | ASTM Ref. | Range (°C) | Graduation | Immersion | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 55-IT5251002 | 38 C | - | 23 to 27 | 0.1 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251004 | 76 C | - | 10 to 55 | 0.5 °C | 93 mm | 30x30x300 mm | 0.1 kg |
| 55-IT5251006 | 8 C | - | 0 to 44 | 0.2 °C | 65 mm | 30x30x300 mm | 0.1 kg |
| 55-IT5251008 | 42 C | - | -38 to +30 | 0.5 °C | 250 mm | 30x30x300 mm | 0.1 kg |
| 55-IT5251010 | 5 C | 7 C | -2 to 300 | 1 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251012 | 6 C | 8 C | -2 to 400 | 1 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251014 | 15 C | 9 C | -5 to 110 | 0.5 °C | 57 mm | 30x30x300 mm | 0.1 kg |
| 55-IT5251016 | 16 C | 10 C | 90 to 370 | 0.2 °C | 57 mm | 30x30x300 mm | 0.1 kg |
| 55-IT5251018 | 28 C | 11 C | -6 to 400 | 2.0 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251020 | 47 C | 13 C | 150 to 175 | 0.5 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251022 | 60 C | 15 C | -2 to 80 | 0.2 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251024 | 61 C | 16 C | 30 to 200 | 0.5 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251026 | - | 17 C | 19 to 27 | 0.1 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251028 | 20 C | 33 C | -38 o 42 | 0.2 °C | 50 mm | 30x30x300 mm | 0.1 kg |
| 55-IT5251030 | 59 C | 35 C | 90 to 170 | 0.2 °C | 50 mm | 30x30x300 mm | 0.1 kg |
| 55-IT5251032 | 35 C | 47 C | 58.6 to 61.4 | 0.05 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251034 | - | 57 C | -20 to 50 | 0.5 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251036 | 63 C | 63 C | -8 to 32 | 0.1 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251038 | 63 C | 110 C | 133.6 to 136.4 | 0.05 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT5251040 | 63 C | 113 C | -1 to 175 | 0.5 °C | Total | 30x30x300 mm | 0.1 kg |
| 55-IT52510 | IP and ASTM Thermometers |
| Accessories | |
|---|---|
Standards: .
