LABORATORY TEST SIEVES ACCORDING TO ISO
Category
Sub Category
Product Code
48-IW-IP
Quantity in Stock
Conctact with us
Standards
ISO 3310-1, ISO 3310-2, ISO 565 | EN 933-1, EN 933-2
The ISO standard Test Sieves are which are used in all types of sieve testing applications, from sampling and classifi cation of soils, aggregates and other powdered and granular materials.

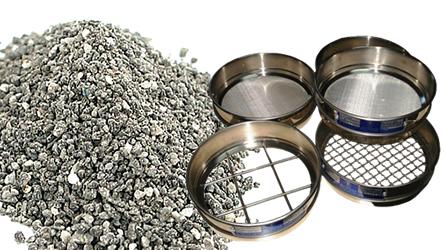

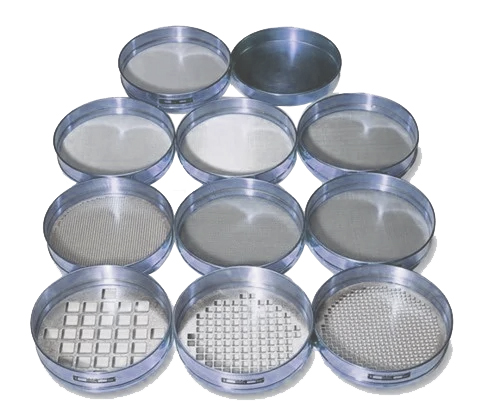

Woven Wire Cloth and Perforated Plate Sieves are supplied in 200 mm and 300 mm frame diameters in various nominal aperture sizes suitable for several applications and standards.
All parts of testing sieves are manufactured from stainless steel. Receiving Pans and Lids are available in stainless steel with 200 mm and 300 mm diameters.
Wet Washing Sieves are used for wet testing of various materials enabling to wash the fines through the sieve without losing any of the sample. Available in 200 mm diameter with 100 mm and 200 mm deep models.
| ISO 3310-1 Woven Wire Cloth Sieves | ||||||
|---|---|---|---|---|---|---|
| Aperture Size | Ø100x50mm | Ø150x50mm | Ø200x50mm | Ø300x75mm | Ø400x50mm | Ø450x50mm |
| Product Code | Product Code | Product Code | Product Code | Product Code | Product Code | |
| 125 mm | 48-IW1012500 | 48-IW1512500 | 48-IW2012500 | 48-IW3012500 | 48-IW4012500 | 48-IW4512500 |
| 100 mm (4”) | 48-IW1010000 | 48-IW1510000 | 48-IW2010000 | 48-IW3010000 | 48-IW4010000 | 48-IW4510000 |
| 90 mm (3-½”) | 48-IW1009000 | 48-IW1509000 | 48-IW2009000 | 48-IW3009000 | 48-IW4009000 | 48-IW4509000 |
| 80 mm | 48-IW1008000 | 48-IW1508000 | 48-IW2008000 | 48-IW3008000 | 48-IW4008000 | 48-IW4508000 |
| 75 mm (3”) | 48-IW1007500 | 48-IW1507500 | 48-IW2007500 | 48-IW3007500 | 48-IW4007500 | 48-IW4507500 |
| 63 mm (2-½”) | 48-IW1006300 | 48-IW1506300 | 48-IW2006300 | 48-IW3006300 | 48-IW4006300 | 48-IW4506300 |
| 53 mm (2.12”) | 48-IW1005300 | 48-IW1505300 | 48-IW2005300 | 48-IW3005300 | 48-IW4005300 | 48-IW4505300 |
| 50 mm (2”) | 48-IW1005000 | 48-IW1505000 | 48-IW2005000 | 48-IW3005000 | 48-IW4005000 | 48-IW4505000 |
| 45 mm (1-¾”) | 48-IW1004500 | 48-IW1504500 | 48-IW2004500 | 48-IW3004500 | 48-IW4004500 | 48-IW4504500 |
| 37.5 mm (1-½”) | 48-IW1003750 | 48-IW1503750 | 48-IW2003750 | 48-IW3003750 | 48-IW4003750 | 48-IW4503750 |
| 31.5 mm (1-¼”) | 48-IW1003150 | 48-IW1503150 | 48-IW2003150 | 48-IW3003150 | 48-IW4003150 | 48-IW4503150 |
| 26.5 mm (1.06”) | 48-IW1002650 | 48-IW1502650 | 48-IW2002650 | 48-IW3002650 | 48-IW4002650 | 48-IW4502650 |
| 25 mm (1”) | 48-IW1002500 | 48-IW1502500 | 48-IW2002500 | 48-IW3002500 | 48-IW4002500 | 48-IW4502500 |
| 22.4 mm (7/8”) | 48-IW1002240 | 48-IW1502240 | 48-IW2002240 | 48-IW3002240 | 48-IW4002240 | 48-IW4502240 |
| 19 mm (¾”) | 48-IW1001900 | 48-IW1501900 | 48-IW2001900 | 48-IW3001900 | 48-IW4001900 | 48-IW4501900 |
| 16 mm (5/8”) | 48-IW1001600 | 48-IW1501600 | 48-IW2001600 | 48-IW3001600 | 48-IW4001600 | 48-IW4501600 |
| 13.2 mm (.530”) | 48-IW1001320 | 48-IW1501320 | 48-IW2001320 | 48-IW3001320 | 48-IW4001320 | 48-IW4501320 |
| 12.5 mm (½”) | 48-IW1001250 | 48-IW1501250 | 48-IW2001250 | 48-IW3001250 | 48-IW4001250 | 48-IW4501250 |
| 11.2 mm (7/16”) | 48-IW1001120 | 48-IW1501120 | 48-IW2001120 | 48-IW3001120 | 48-IW4001120 | 48-IW4501120 |
| 9.5 mm (3/8”) | 48-IW1000950 | 48-IW1500950 | 48-IW2000950 | 48-IW3000950 | 48-IW4000950 | 48-IW4500950 |
| 8 mm (5/16”) | 48-IW1000800 | 48-IW1500800 | 48-IW2000800 | 48-IW3000800 | 48-IW4000800 | 48-IW4500800 |
| 6.7 mm (.265”) | 48-IW1000670 | 48-IW1500670 | 48-IW2000670 | 48-IW3000670 | 48-IW4000670 | 48-IW4500670 |
| 6.3 mm (¼”) | 48-IW1000630 | 48-IW1500630 | 48-IW2000630 | 48-IW3000630 | 48-IW4000630 | 48-IW4500630 |
| 5.6 mm (No. 3-½”) | 48-IW1000560 | 48-IW1500560 | 48-IW2000560 | 48-IW3000560 | 48-IW4000560 | 48-IW4500560 |
| 4.75 mm (No. 4) | 48-IW1000475 | 48-IW1500475 | 48-IW2000475 | 48-IW3000475 | 48-IW4000475 | 48-IW4500475 |
| 4 mm (No. 5) | 48-IW1000400 | 48-IW1500400 | 48-IW2000400 | 48-IW3000400 | 48-IW4000400 | 48-IW4500400 |
| 3.35 mm (No. 6) | 48-IW1000335 | 48-IW1500335 | 48-IW2000335 | 48-IW3000335 | 48-IW4000335 | 48-IW4500335 |
| 2.8 mm (No. 7) | 48-IW1000280 | 48-IW1500280 | 48-IW2000280 | 48-IW3000280 | 48-IW4000280 | 48-IW4500280 |
| 2.36 mm (No.8) | 48-IW1000236 | 48-IW1500236 | 48-IW2000236 | 48-IW3000236 | 48-IW4000236 | 48-IW4500236 |
| 2 mm (No.10) | 48-IW1000200 | 48-IW1500200 | 48-IW2000200 | 48-IW3000200 | 48-IW4000200 | 48-IW4500200 |
| 1.7 mm (No. 12) | 48-IW1000170 | 48-IW1500170 | 48-IW2000170 | 48-IW3000170 | 48-IW4000170 | 48-IW4500170 |
| 1.4 mm (No. 14) | 48-IW1000140 | 48-IW1500140 | 48-IW2000140 | 48-IW3000140 | 48-IW4000140 | 48-IW4500140 |
| 1.18 mm (No.16) | 48-IW1000118 | 48-IW1500118 | 48-IW2000118 | 48-IW3000118 | 48-IW4000118 | 48-IW4500118 |
| 1 mm (No. 18) | 48-IW1000100 | 48-IW1500100 | 48-IW2000100 | 48-IW3000100 | 48-IW4000100 | 48-IW4500100 |
| 850 μm (No. 20) | 48-IW1000085 | 48-IW1500085 | 48-IW2000085 | 48-IW3000085 | 48-IW4000085 | 48-IW4500085 |
| 710 μm (No. 25) | 48-IW1000071 | 48-IW1500071 | 48-IW2000071 | 48-IW3000071 | 48-IW4000071 | 48-IW4500071 |
| 600 μm (No. 30) | 48-IW1000060 | 48-IW1500060 | 48-IW2000060 | 48-IW3000060 | 48-IW4000060 | 48-IW4500060 |
| 500 μm (No. 35) | 48-IW1000050 | 48-IW1500050 | 48-IW2000050 | 48-IW3000050 | 48-IW4000050 | 48-IW4500050 |
| 425 μm (No. 40) | 48-IW1000042 | 48-IW1500042 | 48-IW2000042 | 48-IW3000042 | 48-IW4000042 | 48-IW4500042 |
| 355 μm (No. 45) | 48-IW1000035 | 48-IW1500035 | 48-IW2000035 | 48-IW3000035 | 48-IW4000035 | 48-IW4500035 |
| 300 μm (No. 50) | 48-IW1000030 | 48-IW1500030 | 48-IW2000030 | 48-IW3000030 | 48-IW4000030 | 48-IW4500030 |
| 250 μm (No. 60) | 48-IW1000025 | 48-IW1500025 | 48-IW2000025 | 48-IW3000025 | 48-IW4000025 | 48-IW4500025 |
| 212 μm (No. 70) | 48-IW1000021 | 48-IW1500021 | 48-IW2000021 | 48-IW3000021 | 48-IW4000021 | 48-IW4500021 |
| 180 μm (No. 80) | 48-IW1000018 | 48-IW1500018 | 48-IW2000018 | 48-IW3000018 | 48-IW4000018 | 48-IW4500018 |
| 150 μm (No. 100) | 48-IW1000015 | 48-IW1500015 | 48-IW2000015 | 48-IW3000015 | 48-IW4000015 | 48-IW4500015 |
| 125 μm (No. 120) | 48-IW1000012 | 48-IW1500012 | 48-IW2000012 | 48-IW3000012 | 48-IW4000012 | 48-IW4500012 |
| 106 μm (No. 140) | 48-IW1000010 | 48-IW1500010 | 48-IW2000010 | 48-IW3000010 | 48-IW4000010 | 48-IW4500010 |
| 90 μm (No. 170) | 48-IW1000009 | 48-IW1500009 | 48-IW2000009 | 48-IW3000009 | 48-IW4000009 | 48-IW4500009 |
| 75 μm (No. 200) | 48-IW1000009 | 48-IW1500009 | 48-IW2000009 | 48-IW3000009 | 48-IW4000009 | 48-IW4500009 |
| 63 μm (No. 230) | 48-IW1000006 | 48-IW1500006 | 48-IW2000006 | 48-IW3000006 | 48-IW4000006 | 48-IW4500006 |
| 53 μm (No. 270) | 48-IW1000005 | 48-IW1500005 | 48-IW2000005 | 48-IW3000005 | 48-IW4000005 | 48-IW4500005 |
| 45 μm (No. 325) | 48-IW1000004 | 48-IW1500004 | 48-IW2000004 | 48-IW3000004 | 48-IW4000004 | 48-IW4500004 |
| 38 μm (No. 400) | 48-IW1000003 | 48-IW1500003 | 48-IW2000003 | 48-IW3000003 | 48-IW4000003 | 48-IW4500003 |
| Lid | 48-IW1000002 | 48-IW1500002 | 48-IW2000002 | 48-IW3000002 | 48-IW4000002 | 48-IW4500002 |
| Pan | 48-IW1000000 | 48-IW1500000 | 48-IW2000000 | 48-IW3000000 | 48-IW4000000 | 48-IW4500000 |
| ISO 3310-2 Perforated Plate Sieves | Wet Washing Sieves | |||||
| Aperture Size | Ø 200 mm x 50 mm | Ø 300 mm x 75 mm | Aperture Size | Ø 200 mm x 50 mm | Ø 300 mm x 75 mm | |
| Product Code | Product Code | Product Code | Product Code | |||
| 125 mm | 48-2PC1250 | 48-3PC1250 | 6.3 mm (¼”) | 48-2WWS0630 | 48-3WWS0630 | |
| 106 mm | 48-2PC1060 | 48-3PC1060 | 4.75 mm (No.4) | 48-2WWS0475 | 48-3WWS0475 | |
| 100 mm (4”) | 48-2PC1000 | 48-3PC1000 | 2 mm (No.10) | 48-2WWS0200 | 48-3WWS0200 | |
| 90 mm (3-½”) | 48-2PC0900 | 48-3PC0900 | 425 μm (No. 40) | 48-2WWS0042 | 48-3WWS0042 | |
| 80 mm | 48-2PC0800 | 48-3PC0800 | 75 μm (No. 200) | 48-2WWS0007 | 48-3WWS0007 | |
| 75 mm (3”) | 48-2PC0750 | 48-3PC0750 | 63 μm (No. 230) | 48-2WWS0006 | 48-3WWS0006 | |
| 63 mm (2-½”) | 48-2PC0630 | 48-3PC0630 | ||||
| 56 mm | 48-2PC0560 | 48-3PC0560 | ||||
| 53 mm (2.12”) | 48-2PC0530 | 48-3PC0530 | ||||
| 50 mm (2”) | 48-2PC0500 | 48-3PC0500 | ||||
| 45 mm (1-¾”) | 48-2PC0450 | 48-3PC0450 | ||||
| 40 | 48-2PC0400 | 48-3PC0400 | ||||
| 37.5 mm (1-½”) | 48-2PC0375 | 48-3PC0375 | ||||
| 31.5 mm (1-¼”) | 48-2PC0315 | 48-3PC0315 | ||||
| 28 mm | 48-2PC0280 | 48-3PC0280 | ||||
| 26.5 mm (1.06”) | 48-2PC0265 | 48-3PC0265 | ||||
| 25 mm (1”) | 48-2PC0250 | 48-3PC0250 | ||||
| 22.4 mm (7/8”) | 48-2PC0224 | 48-3PC0224 | ||||
| 20 mm | 48-2PC0220 | 48-3PC0220 | ||||
| 19 mm (¾”) | 48-2PC0190 | 48-3PC0190 | ||||
| 18 mm | 48-2PC0180 | 48-3PC0180 | ||||
| 16 mm (5/8”) | 48-2PC0160 | 48-3PC0160 | ||||
| 14 mm | 48-2PC0140 | 48-3PC0140 | ||||
| 13.2 mm (.530”) | 48-2PC0132 | 48-3PC0132 | ||||
| 12.5 mm (½”) | 48-2PC0125 | 48-3PC0125 | ||||
| 11.2 mm (7/16”) | 48-2PC0112 | 48-3PC0112 | ||||
| 10 mm | 48-2PC0100 | 48-3PC0100 | ||||
| 9.5 mm (3/8”) | 48-2PC0095 | 48-3PC0095 | ||||
| 9 mm | 48-2PC0090 | 48-3PC0090 | ||||
| 8 mm (5/16”) | 48-2PC0080 | 48-3PC0080 | ||||
| 7.1 mm | 48-2PC0071 | 48-3PC0071 | ||||
| 6.7 mm (.265”) | 48-2PC0067 | 48-3PC0067 | ||||
| 6.3 mm (¼”) | 48-2PC0063 | 48-3PC0063 | ||||
| 5.6 mm (No. 3-½”) | 48-2PC0056 | 48-3PC0056 | ||||
| 5 mm | 48-2PC0050 | 48-3PC0050 | ||||
| 4.75 mm (No. 4) | 48-2PC0047 | 48-3PC0047 | ||||
| 4 mm (No. 5) | 48-2PC0040 | 48-3PC0040 | ||||
| Lid | 48-2PC0002 | 48-3PC0002 | ||||
| Pan | 48-2PC0000 | 48-3PC0000 | ||||
| 48-IW10 | Woven Wire Cloth Laboratory Test Sieves Frame Dia:100mm (According to ISO 3310-1 Standarts) |
| 48-IW15 | Woven Wire Cloth Laboratory Test Sieves Frame Dia:150mm (According to ISO 3310-1 Standarts) |
| 48-IW20 | Woven Wire Cloth Laboratory Test Sieves Frame Dia:200mm (According to ISO 3310-1 Standarts) |
| 48-IW30 | Woven Wire Cloth Laboratory Test Sieves Frame Dia:300mm (According to ISO 3310-1 Standarts) |
| 48-IW40 | Woven Wire Cloth Laboratory Test Sieves Frame Dia:400mm (According to ISO 3310-1 Standarts) |
| 48-IW45 | Woven Wire Cloth Laboratory Test Sieves Frame Dia:450mm (According to ISO 3310-1 Standarts) |
| 48-IP20 | Perforated Plate Laboratory Test Sieves Frame Dia:200mm (According to ISO 3310-2 Standarts) |
| 48-IP30 | Perforated Plate Laboratory Test Sieves Frame Dia:300mm (According to ISO 3310-2 Standarts) |
| 48-WWS200 | Wet Washing Sieve, Frame Dia: 200 mm |
| 48-WWS300 | Wet Washing Sieve, Frame Dia: 300 mm |
