Los Angeles Abrasion Testing Machine

The Los Angeles Abrasion Machine is used for determine resistance to degradation testing of coarse aggregates with a smaller than 37.5 mm. The test sample shall consist of clean aggregate which has been dried in an oven at 105 to 110°C tosubstantially constant weight and shall conform to one of the gradings. The test sample and the abrasive charge shall be placed in the Los Angeles abrasion testing machine and the machine rotated at a speed of 31 to 33 rev/min.
The machine shall be so driven and so counter-balanced as to maintain a substantially uniformperipheral speed. At the completion of the test, the material shall be discharged from the machine and a preliminaryseparation of the sample made on a sieve coarser than the l.70 mm IS Sieve.

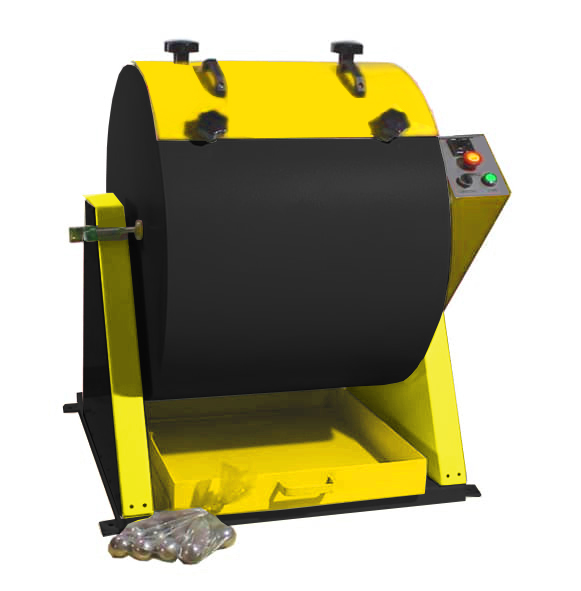

Consists of a hollow steel cylinder, with a wall thickness of 12 mm closed at both ends having an inside diameter of 711 mm, and an inside length of 508 mm. The drum rotates at 31 – 33 rpm. Supplied with an automatic digital counter that shows the number of revolutions for the drum. Abrasive charges(should be ordered separately)
