POCKET TYPE VANE SHEAR APPARATUS
Category
Sub Category
Product
Product Code
54-VS460780
Quantity in Stock
Conctact with us
Standards
ASTM D 1558 | ASTM D 2573

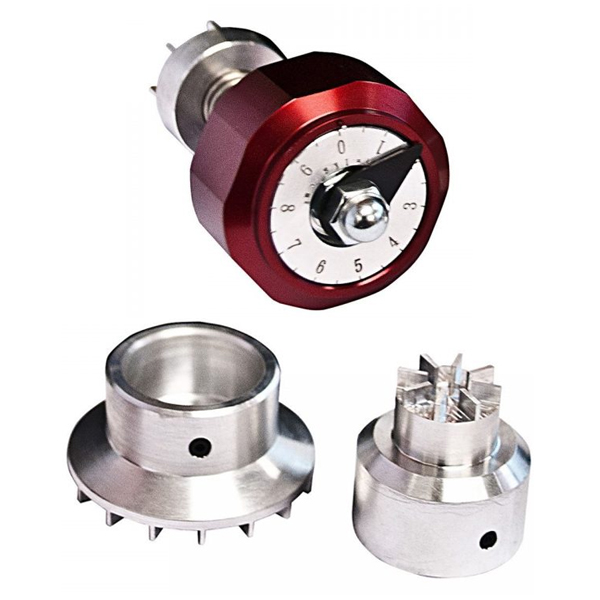

The Pocket Type Vane Shear Apparatus is used for determining resistance of soft clay, silt that are sensitive and cohesive soils at the place.
The Vane Shear Apparatus Set is supplied complete with:
• Standart Vane ( 0 -10 N /cm2 ) that is 25 mm
• Sensitive Vane Adaptor - 0 -2 N /cm2
• High capacity vane adaptor 0 - 25 N/ cm2 and plastic mould.
| Dimensions | 240x200x70 mm |
|---|---|
| Weight (approx) | 0,5 kg |
| 54-VS460780 | Pocket Type Vane Shear Apparatus |
| Accessories | |
|---|---|
| 54-VS460782 | Standart Vane ( 0 -10 N/cm² ) that is 25 mm |
| 54-VS460784 | Sensitive Vane Adaptor - 0 -2 N/cm² |
| 54-VS460786 | High capacity vane adaptor 0 - 25 N/cm² and plastic mould |
Standards: ASTM D 1558 | ASTM D 2573
