SAND DENSITY CONE SETS
Sand Density Cone Set is used to determine the in-situ density of fine grained compacted soil.
The test consists in digging a hole into the ground and then collect, dry and weight the sampled soil. The hole is than filled with dry sand from the cone container.

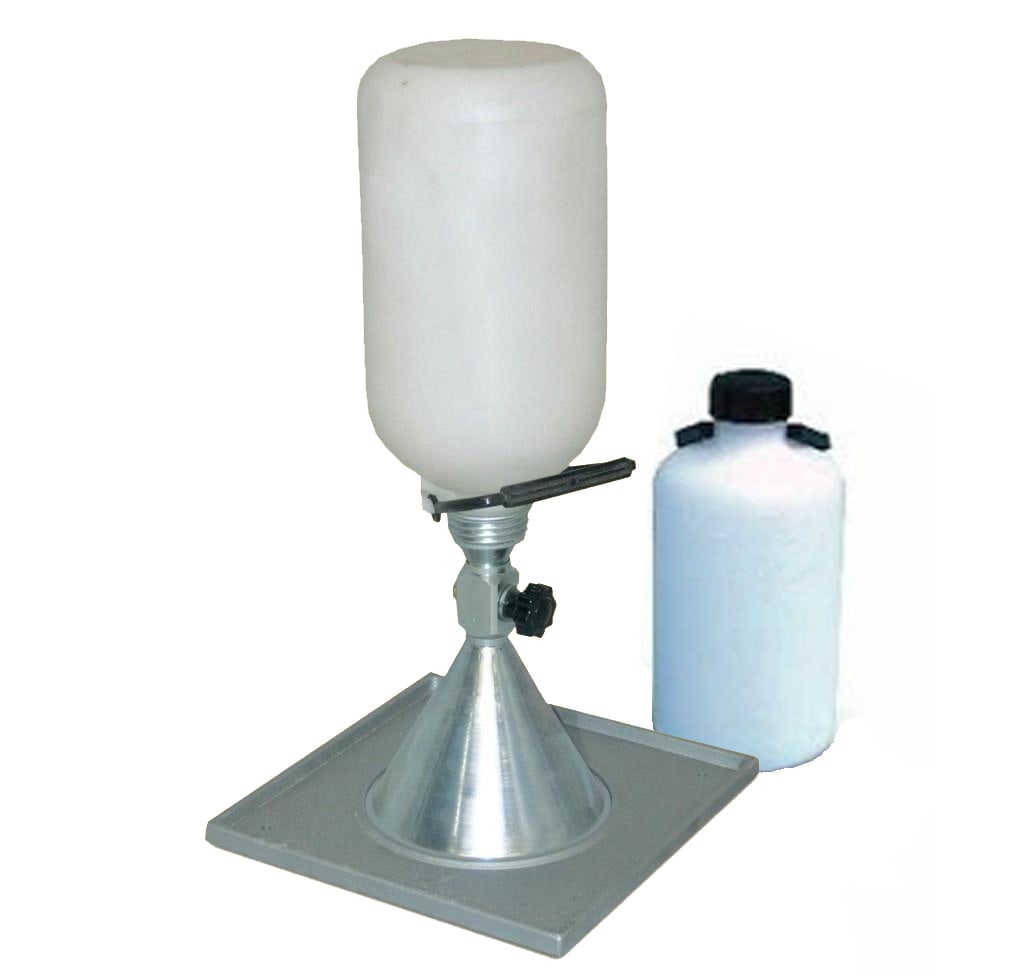

6,5 inch Sand Density Cone Set is supplied with;
• Sand Cone Assembly with valve,
• Metal Base with Centre Hole
• 5lt capacity Plastic Sand Jar.

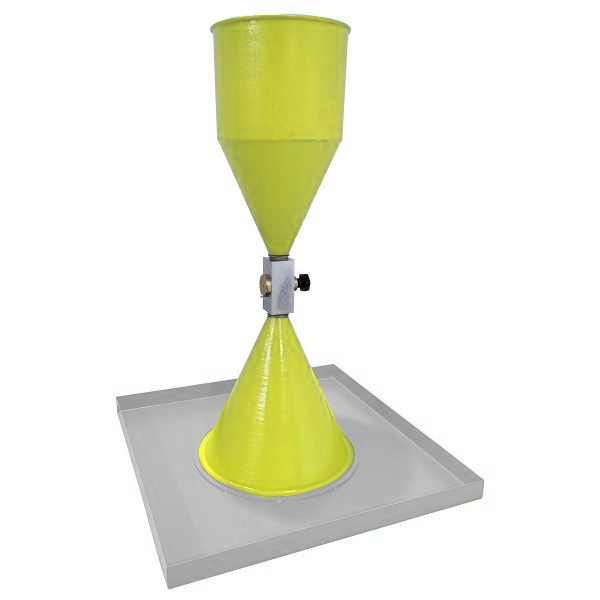

12 inch Sand Density Cone Set is supplied with;
• Sand Cone Assembly with valve,
• Metal Base with Centre Hole
• 15 lt capacity Metal Sand Jar.
12 inch Density Cylinder is used for determining in place density of compacted base courses containing large sizes of coarse aggregates.
| Product Code | 54-SD460800 | 54-SD460820 |
|---|---|---|
| Dimensions | 300x300x550 mm | 600x600x650 mm |
| Weight | 4,5 kg | 16 kg |
| 54-SD460800 | Sand Density Cone Apparatus, 6.5 inch |
| 54-SD460820 | Sand Density Cone Apparatus, 12 inch |
| Accessories | |
|---|---|
| 54-SD460802 | Sand Cone Assembly with valve, 6,5 inch |
| 54-SD460804 | Metal Base with Centre Hole for 54-SD460800 |
| 54-SD460806 | 5lt capacity Plastic Sand Jar |
| 54-SD460808 | Calibration Conteiner for 54-SD460800 |
| 54-SD460822 | Sand Cone Assembly with valve, 12 inch |
| 54-SD460824 | Metal Base with Centre Hole for 54-SD460820 |
| 54-SD460826 | 15 lt capacity Metal Sand Jar for 54-SD460820 |
Standards: ASTM D1556 | AASHTO T181, T191
