The Single column electro-mechanical universal test machines are produced for testing plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, wire, cable, steel etc materials.
The machines are desktop solution for low load material testing present the state of the art testing specifications combined with a modern look and ergonomic design. Electrical servomotor driven, maintence-free, for precise, quiet and smooth work.
The machines are produce a single-column and single-screw test system with capacities ranging from 0.5 kN to 30 kN.

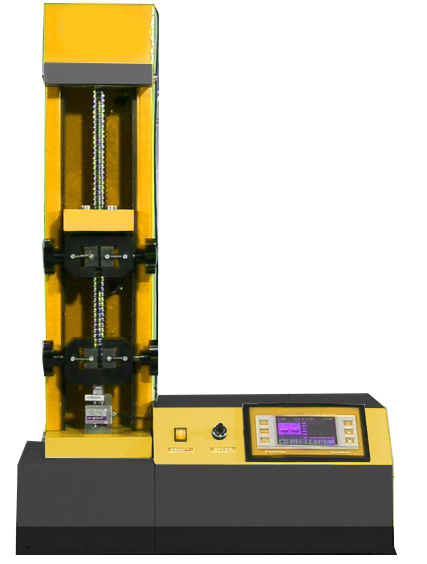

The Single column universal test machines is formed from mobile crosshead, powered by one prestressed ballscrew, guided by one chromed steel column. There are ability to equip it with several load cells to improve accuracy of measurement and control at very low loads.
The machine is automatic recognize of cells and extansometer.
Optimized test space to perform any materials testing with using the right accessories. Devices are automatic operation, servocontroled in force, displacement and strain.
Single column universal test machines of can perform many tests:
• Tensile test according to ISO 6892 , EN 10002-1,
• Bending test according to ASTM E23, ASTM E290,
• Tests according to NADCAP GE- S400 ,
• Welds and testing shear according to CREEP ASTM E139 , ASTM E190,
• Material testing at high temperature EN1002 -5
• Compression test according to ASTM D695 , ASTM E1012 , ISO 1608,
• Fatigue tests with constant amplitude according to BS EN ISO 7270,
• Fatigue tests at low frequency according to NFA 03403 , ASTM D412.
Test can be performed on specimens of different sizes and shapes of preparation: standardized specimens with threaded head or machined flat, welded metal joints mechanical, adhesive bonding, etc.
All materials for their test specimen dimensions fit in the maximum capacity of the machine, can be tested in the testing machine steel, elastomers, wood, rubber, aluminum, composites, titanium, plastics, biomaterials , cement , equipment medical prosthetic tooth.
The single column universal test machines can do tensile, peel, tear, heat seal, adhesive, compression, bend and open force test with suitable grip and accessories.
For low force applications, the single column universal test machines provides 0.5kN to 50 kN capacity available in standard and extra height options.
The Single column universal test machines are equipped with a single column different vertical test space ,the test space is tested at 0.001 mm/min~2540 mm/min (adjustable) test speed to reduce test time for the test materials which the test standard requested.
Application Test
1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, wire, cable, steel etc.
2. Different Test with Different Grips: tensile, peel, tear, heat seal, adhesive, compression, bend and open force etc.
3. Deformation Under Defined Load: Test deformation under defined load of tested sample.
4. Load Under Defined Deformation: Test load under defined deformation of tested sample.
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
PX6 Pro Software
The PX6 Pro software is designed purposely for computer controlled electromechanic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test.
With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
PX6 Pro LCD Data Acquisition Control System
• Different menu languages can be selected via the device via language support. ( English, Spanish, Russian)
• 4 analog high-precision measuring capacities
• 2 analog output sockets (DAC)
• 5 digital outputs for general purpose (can pull relays and control different electrical units)
• Potentiometer input (reference signal input for calibration and remote control)
• 2 each RS 232 serial communication signal outputs (communicates with computers)
• USB communication signal output (communicates with computers)
• Connects to local networks and the Internet with Ethernet 10/100 network connection output (optional)
• Connects to portable devices via Bluetooth wireless connection (optional)
• 500 test results can be stored in internal memory
• Due to the SD (memory) card connection, a large number of test results can be stored in the device memory (40,000 test results).
• Color TFT display supports, 16M colors and supports 800x480 pixel screen resolution
• Resistive touch screen allows easy operation of device functions by touching the screen
• Access to frequently used functions with 6 membrane keypads
• The industrial standard operates with 24VDC supply voltage. Built-in voltage filter and regulator protects against input signal fluctuations
• Sensor modules are compatible with loadcell (load cell), pressure sensor (4-20 / 0-20 mA), potentiometric distance sensors, strain washers, thermocouples and all kinds of mV output sensors.
• Provides precise calibration with multi-point calibration (up to 10 points)
• Setting and calibration menus are password protected and prevent unauthorized use.
• Allows testing with a computer or device
• The device can switch between one-touch load and deformation control modes.
• Firmware updates can be made via USB input. In addition, via the computer allows remote or internet update.
