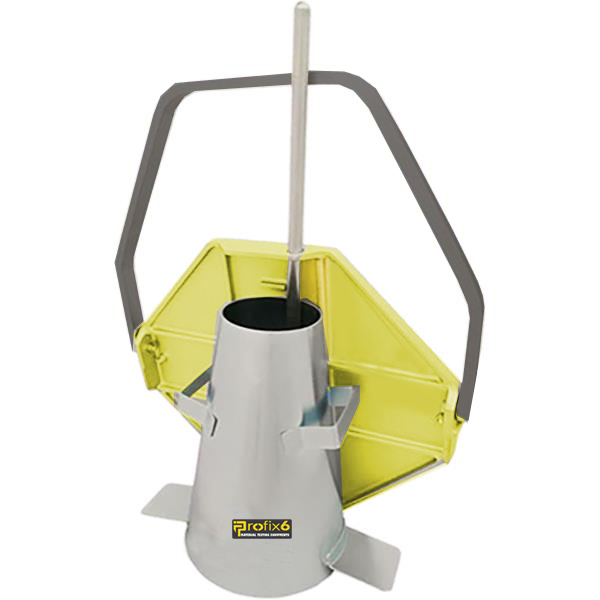

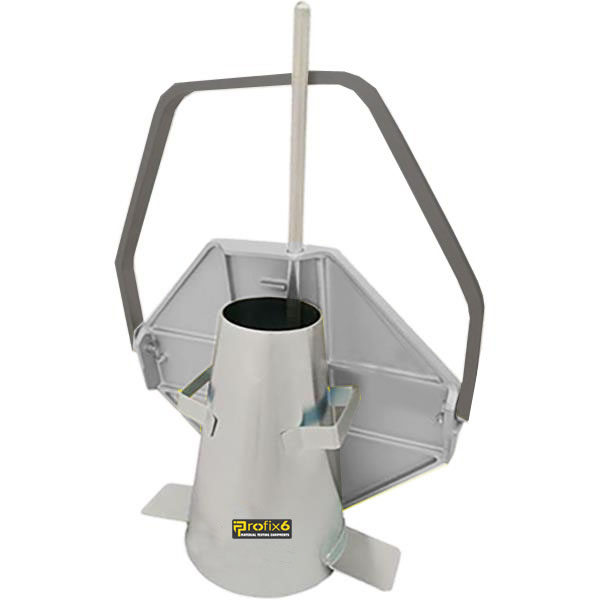

SLUMP CONE TEST SET
The Slump cone set is used for the determination of the consistency and workability of fresh concrete. It is used, indirectly, as a means of checking that the correct amount of water has been added to the mix.
The test is carried out in fresh concrete. The Slump Test Set is galvanized to prevent corrosion.
The Slump cone set is supplied complete with
• Slump Cone Top Dia: 100 ±2 mm / Base Dia: 200 ±2 mm / Height: 300 ±2 mm
• Base plate, galvanized steel, 500x500x60 mm
• Slump Funnel, Galvanized Steel
• Tamping rod, galvanized steel, dia. 16x600 mm
• Rubber Mallet
• Stainless steel rule, 300 mm long
• Aluminium scoop, 500 cc capacity
• Fine wire brush
| Dimensions | 550x600x300 mm |
|---|---|
| Weight (approx) | 7 kg |
| 51-SC475200 | Slump Cone Test Set, Galvanised Steel |
| 51-SC475210 | Slump Cone Test Set, Stainless Steel |
| Accessories | |
|---|---|
| 51-SC475212 | Slump Cone, Galvanised Steel, 100 ±2 mm / Base Dia: 200 ±2 mm / Height: 300 ±2 mm |
| 51-SC475214 | Slump Cone, Stainless Steel, 100 ±2 mm / Base Dia: 200 ±2 mm / Height: 300 ±2 mm |
| 51-SC475216 | Slump Base Plate with Handle, 500x500x60 mm, Galvanised Steel |
| 51-SC475218 | Slump Base Plate with Handle, 500x500x60 mm, Stainless Steel |
| 51-SC475220 | Slump Funnel, Galvanized Steel |
| 51-SC475222 | Slump Funnel, Stainless Steel |
| 51-SC475224 | Tamping Rod Ø 16x600 mm |
| 51-SC475226 | Tamping Rod Ø 10x300 mm |
| 51-SC475228 | Rubber Mallet |
| 51-SC475230 | Steel Ruler 300x1 mm |
| 51-SC475232 | Round Scoop, Medium |
| 51-SC475234 | Wire Brush with Handle |
Standards: EN 12350-8 | EN 12350-2 | ASTM C143 | BS 1881:102 | AASHTO T119 | NF P18-305
