VEBE CONSISTOMETER
Category
Sub Category
Product
Product Code
51-VC475070
Quantity in Stock
Conctact with us
Standards
EN 12350-3 | ASTM C1170

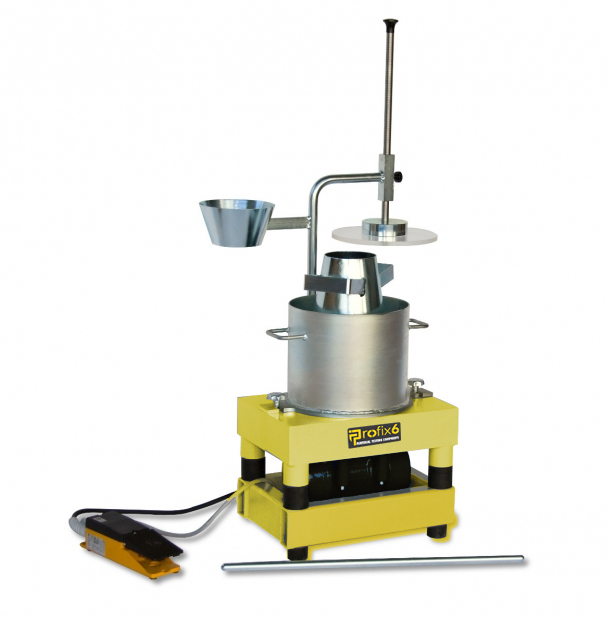

The Vebe consistometer is used to determine the consistency of fresh concrete by subjecting the concrete specimen to vibration after removal of the slump cone.
The assembly is mounted upon a small vibrating table operating at a fixed amplitude and frequency. The time to complete the required vibration gives an indication of the concrete consistency.
The Vebe Consistometer is supplied complete with;
• Vibrating table
• Slump cone
• Graduated rod with transparent disc
• Filling funnel
• Tamping rod
| Vibrating Table | 380x260 mm |
|---|---|
| Cylindrical Bucket Base Diameter | 240 mm |
| Cylindrical Bucket Height | 200 mm |
| Slump Cone Upper Base Diameter | 200 mm |
| Slump Cone Top Diameter | 100 mm |
| Slump Cone Height | 300 mm |
| Dimensions | 560x450x650 mm |
| Weight (approx) | 80 kg |
| Power | 170 W |
| 51-VC475070 | Vebe Consistometer, 220-240 V 50-60 Hz |
| Accessories | |
|---|---|
| 51-VT476750 | Vibrating Table |
| 51-SC475212 | Slump Cone, Galvanised Steel, 100 ±2 mm / Base Dia: 200 ±2 mm / Height: 300 ±2 mm |
| 51-VC475072 | Graduated rod with transparent disc |
| 51-VC475074 | Filling funnel |
| 51-SC475224 | Tamping Rod |
Standards: EN 12350-3 | ASTM C1170
