WATER BATHS

Product
Product Code
55-WB1164
Quantity in Stock
Conctact with us
Standards
EN 12697-34 , EN 13108th | ASTM D1559, D5581 | AASHTO

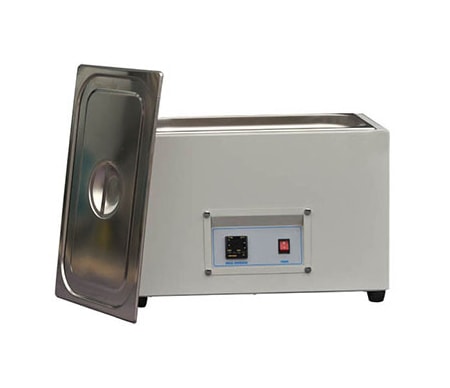

The Water Baths are produced with a focus on temperature uniformity.

Available in 6, 15, 30, and 48 litre capacities, they feature precision digital PID control with a digital display for easy temperature monitoring and adjustment.

A protective, perforated tray sits above the heated floor to protect your samples from directly contacting the heater. Convenient carry handles assist with moving the bath if needed. All baths feature a simple-to-use drain.

Main body is made from corrosion protected mild steel with an epoxy powder coated finish.

The inner tank is made from grade 304 stainless steel for exceptional corrosion resistance. The inner tank made with rounded corners for easy cleaning.

Our water baths are equipped with safety features such as over-temperature protection, which shuts off the heating element if the temperature exceeds a set limit, ensuring the safety of both samples and the device.

Product Code 55-WB116406 55-WB116415 55-WB116430 55-WB116448
Capacity 6 Liters 15 Liters 30 Liters 48 Liters
Control System PID Microprocessor Control
Temperature Range for ambient to +99.9°C
Temperature Sensor PT 100
Temp. Display Accuracy 0,1 °C
Time Settings 1 minute – 99,9 hours + Hold Position
Delayed Start Timer 1 minute – 99,9 hours
Internal Surface Stainless Steel
External Surface Structure Electrostatic Powder Painted Steel
Int. Dimensions 290x140x250 mm 290x230x250 mm 490x290x250 mm 490x610x200 mm
Ext. Dimensions 340x195x410 mm 345x285x410 mm 550x345x410 mm 560x685x410 mm
Power Supply 220-240V 50/60Hz 900 W 220-240V 50/60Hz 900 W 220-240V 50/60Hz 1500 W 220-240V 50/60Hz 2000 W
Weight(Approx.) 10 kg 15 kg 18 kg 25 kg
55-WB116406 Water Bath, 6 Liter - 220-240V 50/60 Hz
55-WB116415 Water Bath, 15 Liter - 220-240V 50/60 Hz
55-WB116430 Water Bath, 30 Liter - 220-240V 50/60 Hz
55-WB116448 Water Bath, 48 Liter - 220-240V 50/60 Hz
Accessories

Standards: EN 12697-34 , EN 13108th | ASTM D1559, D5581 | AASHTO

Water Baths 55-WB1164 PROFIX6 Water Baths
