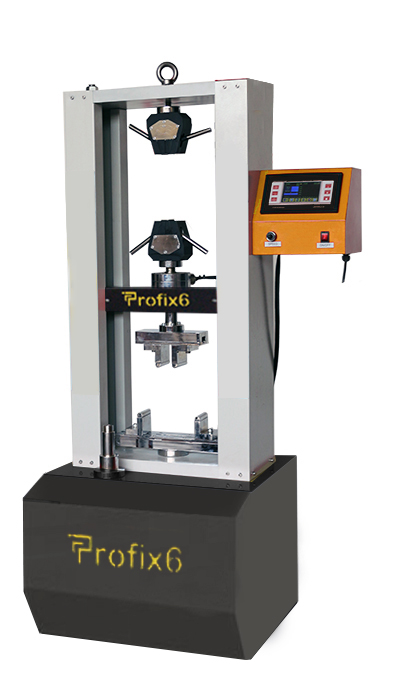

300kN Electromechanical Universal Test Machine
50 kN, 100, 200 and 300 kN capacity fully automatic Electromechanical Universal Testing Machines are manufacture for tensile, compression flexural tests under load or displacement control for a wide range of materials. Electromechanical Universal Testing Machines can be used for tensile test on any material i.e (metal, plastic, textile, wood) by using suitable accessories. Those machines can also be used for general compression, flexural, test on steel, soil, concrete, cement, asphalt and similar materials, by using suitable accessories.
Electromechanical Universal Testing Machines consist of base containing the transmission components and holds two robust columns connected by upper cross head and digital graphics data acquisition and control system. The upper cross head can be adjusted to set the vertical test space for different tests. User can adjust the vertical test space by also lower crosshead moved by an electromechanical system with a single recirculating ball screw, powered by an servomotor. Advanced closed loop control system assures accurate load or displacement pace rate on sample.
The load is measured by a load cell that located on upper crosshead and displacement is measured by an encoder fit to the servo motor on both models.
The user will have large flexibility during the test with advanced PROFIX6 test software installed on PC. The machine is supplied complete with high precision load cell. Accessories are not included and have to be ordered separately.
| U4400 - | Electromechanical Tensile Testing Machine 50 kN, 220-240 V 50 /60 Hz |
| U4400/110 - | Electromechanical Tensile Testing Machine 50 kN, 110 V 60 Hz |
| U4410 - | Electromechanical Tensile Testing Machine 100 kN, 220-240V 50/60 Hz |
| U4410/110 - | Electromechanical Tensile Testing Machine 100 kN, 110 V 60 Hz |
| U4420 - | Electromechanical Tensile Testing Machine 200 kN, 220-240V 50/60 Hz |
| U4420/110 - | Electromechanical Tensile Testing Machine 200 kN, 110 V 60 Hz |
| U4430 - | Electromechanical Tensile Testing Machine 300 kN, 220-240V 50/60 Hz |
| U4430/110 - | Electromechanical Tensile Testing Machine 300 kN, 110 V 60 Hz |
P.Code
U4400
U4410
U4430
Capacity
50 kN
100 kN
300 kN
Max. Vertical Test Space (Without Accessories).
700 mm
900 mm
900 mm
Distance Between Columns
300 mm
400 mm
600 mm
Crosshead Trave
400 mm
300 mm
200 mm
Test Speed Range
0-100 mm/min.
0-500 mm/min.
0-750 mm/min.
Load Rate
0.001 – 2 kN/s (Depend on Specimen Stiffness)
0.001 – 2 kN/s (Depend on Specimen Stiffness)
0.001 – 2 kN/s (Depend on Specimen Stiffness)
Class 1
Class 1 starting from 1% of the capacity
Class 1 starting from 1% of the capacity
Class 1 starting from 1% of the capacity
Encoder Resolution
0.001 mm
0.001 mm
0.001 mm
Encoder Accuracy
0.01 mm
0.01 mm
0.01 mm
Electrical Requirement
220-240V, 50-60Hz,1 phase
220-240V, 50-60Hz,1 phase
220-240V, 50-60Hz,1 phase
Dimensions (wxlxh)
1100x400x2000 mm
1200x500x2300 mm
1300x660x2300 mm
Weight
450 kg
950 kg
1100 kg
