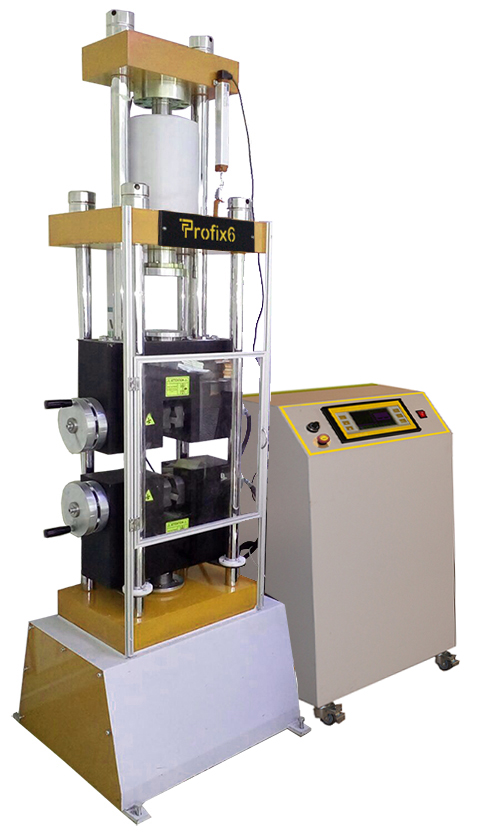

400kN Hydraulic Tensile Testing Machine

Product Code
U4240
Quantity in Stock
qty
Price
Ask Price
Ask Price

Universal Hydraulic Tensile Test Machines are produced to test the ferrous materials for structural values such as yield strength and tensile strength. Universal Test Machines can also be used for compression tests up to the capacity of the machine. Maximum capacity is 600 kN. Can be test flat and round samples. 0-40 mm flat and 8-32 mm round samples can be tested with a hydraulic jaws that comply with standards.
Load cell is used for load measurements. Strain measurement is done by the electronic displacement transducer built in the machine if required external extensometer fitted to the specimen also can be used for strain measurement. Strain measurements can be done directly from the extensometer fitted to the specimen.
Tests can be done automatic by digital control unit or computer. Machine complete the test with the set pace rate and turns to start position automatically.
HYDRAULIC GRIPS
Hydraulic grips are very safe. Hydraulic grips come with grip sets for pulling 8 – 32 mm diameter cylinder samples. The hydraulic grips has an independent hydraulic power unit with a working pressure of 400 bars. Jaw faces for flat samples should be ordered separately.
EXTENSOMETER
Different types of extensometers with accuracy of ±0.1% of indicated value are available depending on requirements. Extensometer can directly measure deformation of specimens.
Data Acquisition & PC Software
The Universal Testing machine can be controlled (Start, Stop commands) by a computer with the software given free of charge by PROFIX6. This software provides data acquisition and management for compression, tensile and splitting tensile test throughout the test execution. The test results certificate includes all descriptive information. Therefore, test parameters can be set and details about the test carried out such as client details, test type, specimen type, user info can be printed out as well as test report and graph.

P.Code

U4240

U4260

U4300

Capacity

400 kN

600 kN

1000 kN

Test Speed

2mm/min - 25mm/min

2mm/min - 25mm/min

2mm/min - 25mm/min

Load Measurement Accuracy

± %1

± %1

± %1

Displacement Measurement Resolution

0,01 mm

0,01 mm

0,01 mm

Lower Columns Diameter

60 mm

70 mm

90 mm

Upper Columns Diameter

60 mm

70 mm

90 mm

Vertical Test Distance for Tension

Min.: 40 mm - Max.: 280 mm

Min.: 40 mm - Max.: 320 mm

Min.: 40 mm - Max.: 400 mm

Vertical Test Distance for Compression

Max. 110 mm

Max. 110 mm

Max. 110 mm

Distance Between Columns

450 mm

450 mm

450 mm

Piston Stroke

150 mm

150 mm

150 mm

Max Pressure for Grips

350 Bar

350 Bar

350 Bar

Max Pressure for Load

200 Bar

200 Bar

200 Bar

Dimensions (wxlxh)

1400x1000x2500 mm

1500x1000x2750 mm

1800x1200x3000 mm

Weight

1750 kg

1850 kg

2500 kg







U4240 - Hydraulic Universal Tensile Testing Machine 400 kN, 220-240V 50/60 Hz
U4240/110 - Hydraulic Universal Tensile Testing Machine 400 kN, 110 V 60 Hz
U4260 - Hydraulic Universal Tensile Testing Machine 600 kN, 220-240V 50/60 Hz
U4260/110 - Hydraulic Universal Tensile Testing Machine 600 kN, 110 V 60 Hz
U4300 - Hydraulic Universal Tensile Testing Machine 1000 kN, 220-240V 50/60 Hz
U4300/110 - Hydraulic Universal Tensile Testing Machine 1000 kN, 110 V 60 Hz
