J-RING TEST SET FOR SCC
Category
Sub Category
Product
Product Code
51-JR475100
Quantity in Stock
Conctact with us
Standards
EN 12350-12

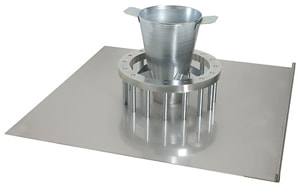

The J-Ring test apparatus is used for determining the passing ability, the flow spread and t500 flow time of the self compacting concrete as the concrete flows through the J-Ring.
The apparatus consists of a stainless steel crown with 16 bars 18 mm diameter.
The J-Ring Test Apparatus is supplied complete with;
• J-Ring, Narrow Gap
• Base Plate for J-Ring and Slump-Flow Tests
• Steel Weighted Collar, 9 kg
• Slump Cone for 51-JR475100
| Dimensions | 900x900x300 mm |
|---|---|
| Weight (approx) | 32 kg |
| 51-JR475100 | J-Ring Apparatus Test Set |
| Accessories | |
|---|---|
| 51-JR475102 | Base Plate for J-Ring and Slump-Flow Tests |
| 51-JR475104 | J-Ring, Narrow Gap |
| 51-SC475212 | Slump Cone, Galvanised Steel, 100 ±2 mm / Base Dia: 200 ±2 mm / Height: 300 ±2 mm |
| 51-JR475106 | Steel Weighted Collar, 9 kg |
Standards: EN 12350-12
