Digital Vacuum and Preesure Gauge

Category
Sub Category
Product Code
GE-0700
Quantity in Stock
qty
Price
Ask Price
Ask Price

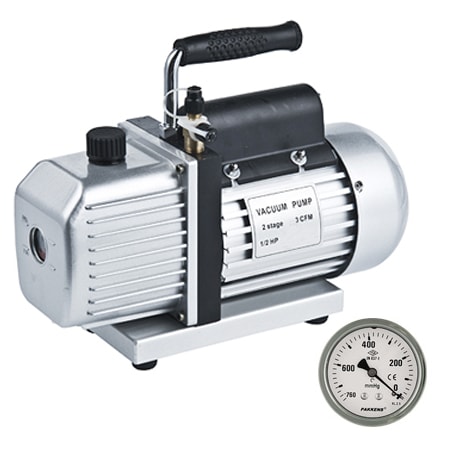

The Vacuum pumps are single and dual stage for providing the vacuum power which is required for various applications in material testing. Two stage rotary-vane design improves the ultimate vacuum and pump speed and reduces the evacuation time.The integrated pump body design ensures the reliability and easy maintenance. Built-in oil pump cycling design forced-lubricates the pump chamber and sliding bearing and ensures its lubrication and seal. Anti-Suckback design prevents oil from returning back to the system.The intake filter can prevent foreign matter from entering into the pump chamber and the exhaust fitting separates oil vapour from the exhaust flow. Aluminium oil housing, trestle and motor cover forms a rigid and light design.Thermal protection of the motor makes the pump to run steadily and ensures safety.

TMG-0701

TMG-0702

TMG-0703

Frequency

50 Hz

60 Hz

50 Hz

60 Hz

50 Hz

60 Hz

Flow Rate

Ultimate

Vacuum

CFM

L/min

1.8

2.0

3.5

4.0

4.5

5.0

51

57

100

113

128

142

Partial

Pressure Total Pressure

2 Pa

2 Pa

2x10-1 Pa

150 micron

150 micron

15 micron

Motor (HP)

Intake Fitting Oil Capacity Dimensions Weight (approx.)

1/4

1/3

1/2

1/4" Flare

1/4" & 3/8" Flare

1/4" & 3/8" Flare

250 ml

250 ml

325 ml

290x125x225 mm

320x125x235 mm

340x140x245 mm

6.5 kg

8.0 kg

10.5 kg

TMG-0701

Vacuum Pump 51 L Capacity, 220-240 V 50/60 Hz

TMG-0702

Vacuum Pump 100 L Capacity, 220-240 V 50/60 Hz

TMG-0703

Vacuum Pump 128 L Capacity, 220-240 V 50/60 Hz

TMG-0704

Vacuum Gauge 760 mmHg Manometer

Digital Vacuum and Preesure Gauge GE-0700 PROFIX6 Digital Vacuum and Preesure Gauge
PROFIX6
