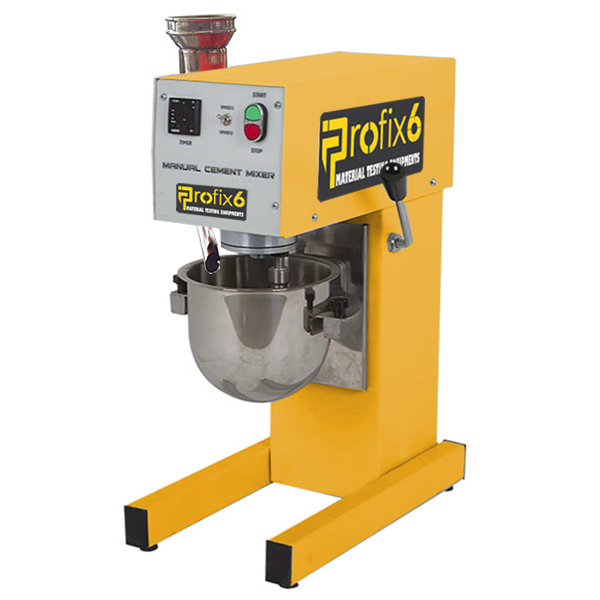

MANUAL MORTAR MIXER
The Manual mortar mixer has been designed to mix mortars and cement pastes primarily to the international of standards. The user can choose beater speeds easily by using switch fitted to the machine.
The mixing time can be adjusted from the digital timer on the front control panel.
Two speeds are defined on the manual mortar mixer: low and high speed.
The User can choose beater;
Low Speed: The paddle revolves at a rate of 140 rpm with a planetary motion of 62 rpm.
The mixer is supplied complete with bowl and the beater.
| Dimensions | 400x580x650 mm |
|---|---|
| Weight (approx) | 56 kg |
| Power | 400 W |
| 50-MM472570 | Manual Mortar Mixer 5 Liter Capacity - 220-240V 50/60Hz |
| 50-MA472580 | Spare Bowl, 5 Liter Capacity |
| 50-MA472582 | Spare Beater |
Standards: ASTM C109, C305 | AASHTO T106, T162 | EN 196-1, 196-3:2005, 413-2, 459-2, 480-1
