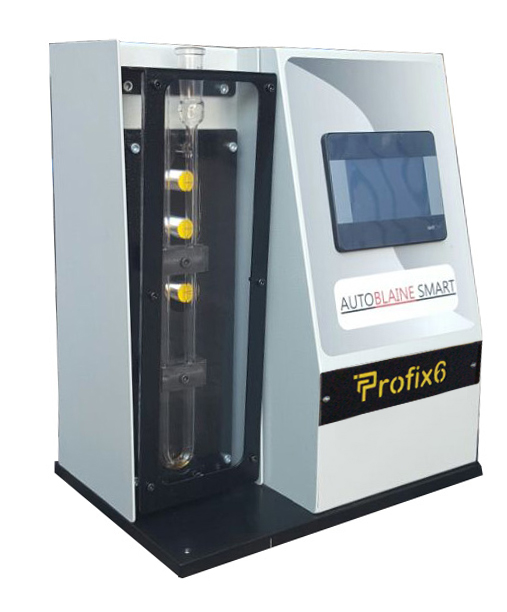

PC Controlled Automatic Blaine Apparatus

PRODUCT MODEL:
C3490 - PC-Controlled Automatic Blaine Apparatus, 220-240V 50/60 Hz
C3490/110 - PC-Controlled Automatic Blaine Apparatus, 110 V 60 Hz
C3492 - Calibration Sand 1 (coarse)
C3494 - Calibration Sand 2 (fine)

PRODUCT STANDARDS:
ASTM C204 | AASHTO 153 | EN 196-6,
The PC-Controlled Automatic Blaine Apparatus is used to determine particle size of powder materials such as portland cement and lime in terms of their specific surface according to the Blain technique. Measuring cell is 41 mm dia. and the volume is approx. 73 cm³.
Calibration Sand 1 (coarse), specific surface approx. 2800 cm²/g officially tested approx. 600 g.
Calibration Sand 2 (fine) specific surface approx. 4000 cm²/g officially tested approx. 600 g.
PC-Controlled Automatic Blaine Apparatus is supplied complete with;
Fill oil,
Syringe with tube,
Tamper,
500 pcs. round filter paper (Ø 41mm)
10 pcs. dust filter (Ø13mm)

Dimensions

260x400x450 mm

Weight (approx)

11 kg



  • Collecting tray
