Le Chatelier Mould

PRODUCT MODEL:
C4015 - Le Chatelier Soundness Test Set
C4016 - Le Chatelier Mould

PRODUCT STANDARDS:
EN 196-3 | EN ISO 9597
The Le Chatelier Mould is used to determine the volume stability of cement. 30 mm in diameter, with 30 mm height and 150 mm in length from a special alloy material is produced by combining the two branches.

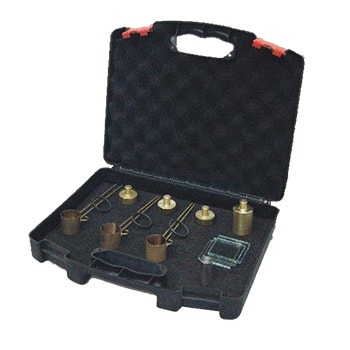

Le Chatelier Soundness Test Set is supplied complete with;
• Le Chatelier moulds 3 pcs.
• 50x50 mm glass plates 6 pcs.
• 300 gr Weights 1 pcs.
• 100 gr Weight, 3 pcs.
• Tamping Rod 17 mm dia. x 70 gr
• Steel Ruler
• Plastic Carrying Case

Dimensions

350x300x100 mm

Weight (approx)

2,5 kg



  • Collecting tray
