SHRINKAGE MOULD
Category
Sub Category
Product
Product Code
50-SM473050
Quantity in Stock
Conctact with us
Standards
EN 196-1, EN 1367-04, EN12617-4, EN12808-4 | ASTM C109, ASTM C348, ASTM C490 | NF P18-427, NF P15-433 | BS 1881, BS 4550, BS 6073 | UNI 6687, UNI 8520-22, UNI 11604 | DIN 1164

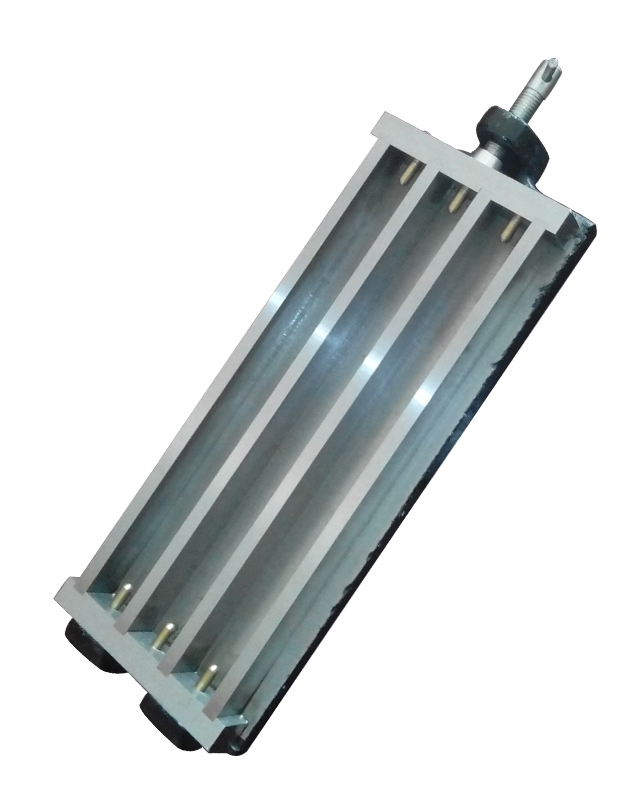

The Shrinkage Mould is have been manufactured from steel and all internal surfaces are machined.
Dimensions and specifications comply with the related standards. The moulds has the surface hardness of a minimum HV400.
| Product Model | 50-PM473100 | 50-PM473130 | 50-PM473140 | 50-PM473150 | 50-PM473160 | 50-PM473170 | 50-PM473180 |
|---|---|---|---|---|---|---|---|
| Dimension | 160x200x60 mm | 120x270x35 mm | 120x300x35 mm | 250x300x35 mm | 190x270x95 mm | 190x320x95 mm | 200x220x60 mm |
| Weight (approx) | 8 kg | 6 kg | 4.5 kg | 17 kg | 9 kg | 14 kg | 8 kg |
| 50-PM473100 | 40x40x160 mm Mould for EN12617-4, EN12808-4, ASTM C348, UNI 6687, NF P15-433, DIN 1164 Standards |
| 50-PM473130 | 25x25x250 mm Three Gang Prism Mould for ASTM C490 Standard |
| 50-PM473140 | 25x25x280 mm Three Gang Prism Mould for UNI 8520-22 Standard |
| 50-PM473150 | 70x70x280 mm Three Gang Prism Mould for NF P18-427 Standard |
| 50-PM473160 | 75x75x254 mm Two Gang Prism Mould for BS 1881, 6073 Standard |
| 50-PM473170 | 75x75x285 mm Two Gang Prism Mould for UNI 11604 Standard |
| 50-PM473180 | 50x50x200 mm Three Gang Prism Mould for EN 1367-04 Standard |
| 50-PM473102 | Steel Insert for 40x40x160 mm mould. Pack of 12 Pieces |
| 50-PM473104 | Referance Rod for 40x40x160 mm mould |
| 50-PM473132 | Steel Insert for 25x25x250 mm mould. Pack of 12 Pieces |
| 50-PM473134 | Referance Rod for 25x25x250 mm mould |
| 50-PM473142 | Steel Insert for 25x25x280 mm mould. Pack of 12 Pieces |
| 50-PM473144 | Referance Rod for 25x25x280 mm mould |
| 50-PM473152 | Steel Insert for 70x70x280 mm mould. Pack of 12 Pieces |
| 50-PM473154 | Referance Rod for 70x70x280 mm mould |
| 50-PM473162 | Steel Insert for 75x75x254 mm mould. Pack of 12 Pieces |
| 50-PM473164 | Referance Rod for 75x75x254 mm mould |
| 50-PM473172 | Steel Insert for 75x75x285 mm mould. Pack of 12 Pieces |
| 50-PM473174 | Referance Rod for 75x75x285 mm mould |
| 50-PM473182 | Steel Insert for 50x50x200 mm mould. Pack of 12 Pieces |
| 50-PM473184 | Referance Rod for 50x50x200 mm mould |
Standards: EN 196-1, EN 1367-04, EN12617-4, EN12808-4 | ASTM C109, ASTM C348, ASTM C490 | NF P18-427, NF P15-433 | BS 1881, BS 4550, BS 6073 | UNI 6687, UNI 8520-22, UNI 11604 | DIN 1164
